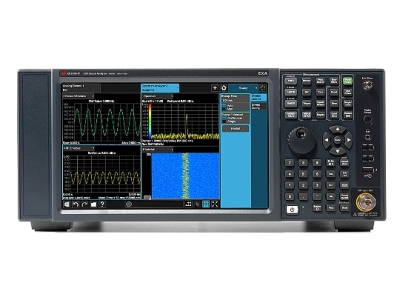

KEYSIGHT是德N9020B 频谱分析仪（526/B1X/544选件）
N9020B-MXA矢量信号分析仪 JIANG
N9020B-RT1 高达 85 MHz 带宽的实时分析，基本检测，多点触控
频率选件3.6、8.4、13.6、26.5 GHz，使用混频器可达 1.1 THz
z大分析带宽160 MHz
带宽选件25 MHz 标配，40、85、125、160 MHz
z大实时带宽160 MHz
实时带宽选件85, 125, 160 MHz
产品介绍
N9020B-RT1 高达 85 MHz 带宽的实时分析多点触控
1 GHz 时的 DANL-166 dBm
1 GHz 时，10 kHz 频偏处的相位噪声-114dBc/Hz
1 GHz 时，30 kHz 频偏处的相位噪声-114dBc/Hz
1 GHz 时，1 MHz 频偏处的相位噪声-136dBc/Hz
总体幅度精度±0.23 dB
三阶截获（TOI），1 GHz 时+20 dBm
1 GHz 时的z大三阶动态范围116 dB
仪器类型频谱分析仪
应用——通用89600 VSA 软件
模拟解调
噪声系数
相位噪声
脉冲
实时频谱分析
MATLAB
应用——蜂窝GSM/EDGE
LTE/LTE-Advanced
NB-IoT
W-CDMA/HSPA/HSPA+
Frequency range
N9020B-503 Frequency Range, 10 Hz to 3.6 GHz
N9020B-508 Frequency Range, 10 Hz to 8.4 GHz
N9020B-513 Frequency Range, 10 Hz to 13.6 GHz
N9020B-526 Frequency Range, 10 Hz to 26.5 GHz
N9020B-532 Frequency Range, 10 Hz to 32 GHz
N9020B-544 Frequency Range, 10 Hz to 44 GHz
N9020B-550 Frequency Range, 10 Hz to 50 GHz
Preamplifier
N9020B-P03 Preamplifier, 3.6 GHz
N9020B-P08 Preamplifier, 8.4 GHz
N9020B-P13 Preamplifier, 13.6 GHz
N9020B-P26 Preamplifier, 26.5 GHz
N9020B-P32 Preamplifier, 32 GHz
N9020B-P44 Preamplifier, 44 GHz
N9020B-P50 Preamplifier, 50 GHz
Bandwidth
N9020B-B1A Analysis Bandwidth, 125 MHz
N9020B-B1X Analysis Bandwidth, 160 Mhz
N9020B-B40 Analysis Bandwidth, 40 MHz
N9020B-B85 Analysis Bandwidth, 85 MHz
Performance Options
N9020B-FT2 Frequency Mask Trigger, OptimumDetection License
N9020B-MPB Microwave Preselector Bypass
N9020B-NF2 Noise Floor Extension
N9020B-PFR Precision Frequency Reference
N9020B-TDS Time Domain Scan
N9020B-DP2 Deep Capture Memory
N9020B-EA3 Electronic Attenuator, 3.6 GHz,Upgrade
N9020B-EDP Enhanced Display Package License
N9020B-EMC Basic EMC Functionality License
N9020B-FP2 Fast Power, Up To 40 MHz Bandwidth
N9020B-FT1 Frequency Mask Trigger, BasicDetection License
N9020B-RBE Resolution Bandwidth Extended
baseband Inputs
N9020B-BBA I/Q baseband Inputs, Analog
Calibration Options
N9020B-AMG Calibration + Uncertainties +Guardbanding (Accredited)
N9020B-A6J ANSI Z540-1-1994 Calibration
N9020B-UK6 Commercial Calibration Certificatewith Test Data
Connection Options
N9020B-CR3 Connector, Wideband IF Output
N9020B-CRP Connector, Programmable Rear IFOutput
N9020B-YAS Y-Axis Ouptut
External Mixing
N9020B-EXM External Mixing
Real time signal analysis
N9020B-RT1 Real-time analysis up to maximumavailable BW, basic detection license
N9020B-RT2 Real-time analysis up to maximumavailable BW, optimum detection, license
Portable Packaging
N9020B-PRC Portable Configuration
Security – PC features
N9020B-SF2 Security F
