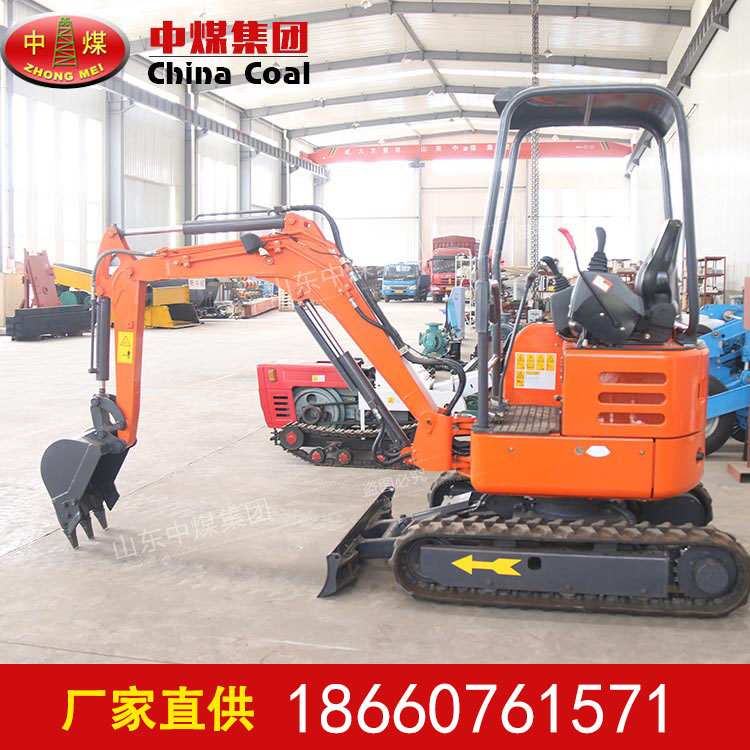

整机基本参数Basic parameters of the whole machine

整机重量Total weight

3600KG

运输时总长shipping length

4530(mm)

运输时总高

Total height during transportation

2150(mm)

运输宽度

Transport width

1520(mm)

轮胎中心距离Tire center distance

2210(mm)

配重离地间隙

Counterweight ground clearance

883(mm)

轮胎数量umber of tires

4-650

动臂长度Boom length

2350(mm)

斗杆长度Stick length

1230(mm)

工作范围

Working Range

z大挖掘高度Max.Digging Height

3840(mm)

z大卸载高度Max.Dumping Height

3050(mm)

z大挖掘深度Max.Digging Depth

2100(mm)

z大挖掘范围Max.Digging radius

4300(mm)

z小回转半径

Minimum radius of gyration

1250(mm)

推土铲z大提升高度

Maximum lifting height of earth shovel

400(mm)

推土铲z大掘地深度

The maximum digging depth of dozer

300(mm)

尾部回转半径Min Tail swing radius

1250(mm)

动力系统Dynamical system

发动机型号Model

ZN490

额定功率power

34KW

冷却方式Cooling method

水冷water-cooling

液压系统Hydraulic System

额定工作压力Operating Pressure

22mpa

回转马达Rotary motor

柱塞Plunger

主泵Main pump

变量柱塞Variable plunger

形式Shape

负载敏感系统

Load Sensing System

性能参数performance parameter

铲斗容量（SAE）Bucket Capacity

0.26m³

z大挖掘力Maximum digging force

5560N

行走速度Travel speed

2.2KM/h

回转速度Unit swing speed

6.8r/min

液压油容量Hydraulic oil capacity

75L

燃油箱容量Hydraulic tank capacity

12L
